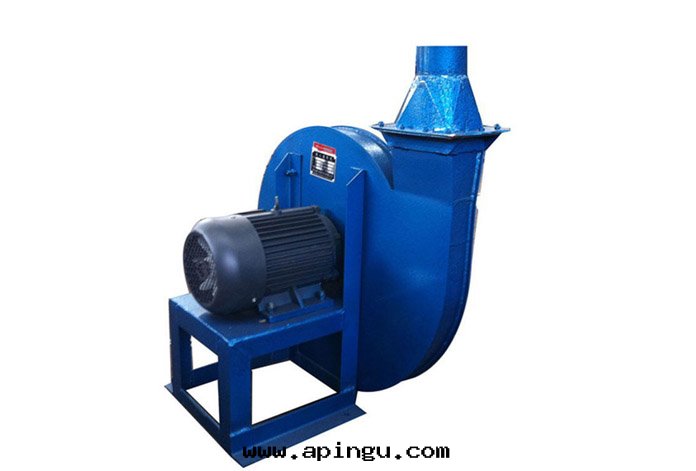

高壓離心风機
时間：2019-01-01 14:28 tags: 高壓风機
高壓離心风機主要有9-19，9-26型高壓離心通风機，本通风機为單吸入式，有NO.4 4.5 5 5.6 6.3 7.1 8 9 10 11.2 12.5 14.16 共13个機号。通风機可制成順旋和逆旋两種型式，從電機一端正視，如葉輪順时針旋轉称順旋风機，以“順”表示；逆时針旋轉称逆轉风機，以“逆”表示。风機的出口位置以機殼的出口表示。“順”，“逆”均可制成0度，45度，90度，135度，180度，225度。共六種角度。风機的傳動方式为A式（NO.4-6.3）和D式（NO.7.1-16）两種。 2）高壓離心风機結構特點： 葉輪：9-19型风機葉片为12片，9-26型风機葉片为16片。均属前向彎曲葉型。葉輪擴壓器外緣最高圆周速度不超过140m/s。葉輪成型後经静、動平衡校正，故運轉平穩。 機殼：用普通鋼闆焊接成蝸形殼整體。 進风口：做成收斂式流線型的整體結構，用螺栓固定在前蓋闆組上。 傳動組：由主軸、軸承管、聯軸器等組成。主軸由優質鋼制成。軸質箱整體結構，采用球軸承，用軸承潤滑脂潤滑。
9-19型高壓離心通心機，与國内外同類型的风機相比具有效率高、噪音低、性能曲線平坦，高效区宽廣等優點。
适用範圍：
該风機一般用锻冶爐及高壓強制通风，並可廣泛用于輸送物料、輸送空气及無腐蝕性不自然，不含粘性物質之气體。介質温度最高不超过80度，但也可根據用户要求制成高温风機。介質中所含塵土及硬質颗料不大于150mg/立方米。
本风機为單吸入式，有4，4.5，5，5.6,6.3,7.1,8,9,10,11.2,12.5,14,16共13个機号。均可做成左、右旋0度、45度、90度、135度、180度、225度六種角度。傳動方式为A式和D式两種。
9-19高壓離心通风機性能参數表
|
機号
No |
傳動方式 |
轉速
R/min |
序号 |
流量
m3/h |
全壓
Pa |
内效率
% |
内功率
kw |
所需功率
kw |
電動機 |
|
|
型号 |
功率kw |
|||||||||
|
4 |
A |
2900 |
1 |
824 |
3584 |
70 |
1.16 |
1.5 |
Y90L-2 |
2.2 |
|
2 |
970 |
3665 |
73.5 |
1.33 |
1.7 |
|||||
|
3 |
1116 |
3647 |
75.5 |
1.48 |
1.9 |
|||||
|
4 |
1264 |
3597 |
76 |
1.64 |
2.1 |
|||||
|
5 |
1410 |
3507 |
75.5 |
1.80 |
2.3 |
Y100L-2 |
3 |
|||
|
6 |
1558 |
3384 |
73.3 |
1.97 |
2.6 |
|||||
|
7 |
1704 |
3253 |
70 |
2.17 |
2.6 |
|||||
|
4.5 |
A |
2900 |
1 |
1174 |
4603 |
71.2 |
2.07 |
2.5 |
Y112M-2 |
4 |
|
2 |
1397 |
4684 |
75 |
2.38 |
2.9 |
|||||
|
3 |
1616 |
4672 |
77 |
2.68 |
3.2 |
|||||
|
4 |
1839 |
4580 |
77.3 |
2.98 |
3.6 |
|||||
|
5 |
2062 |
4447 |
76.2 |
3.29 |
3.9 |
|||||
|
6 |
2281 |
4297 |
73.8 |
3.63 |
4.4 |
Y132S1-2 |
5.5 |
|||
|
7 |
2504 |
4112 |
70 |
4.03 |
4.8 |
|||||
|
5 |
A |
2900 |
1 |
1610 |
5697 |
72.7 |
3.43 |
4.1 |
Y132S2-2 |
7.5 |
|
2 |
1932 |
5768 |
76.2 |
3.98 |
4.8 |
|||||
|
3 |
2254 |
5740 |
78.2 |
4.50 |
5.4 |
|||||
|
4 |
2576 |
5639 |
78.5 |
5.04 |
5.8 |
|||||
|
5 |
2844 |
5517 |
77.2 |
5.54 |
6.4 |
|||||
|
6 |
3166 |
5323 |
74.5 |
6.17 |
7.1 |
|||||
|
7 |
3488 |
5080 |
70.5 |
6.86 |
7.9 |
Y160M1-2 |
11 |
|||
|
5.6 |
A |
2900 |
1 |
2262 |
7182 |
72.7 |
6.05 |
7.0 |
Y160M1-2 |
11 |
|
2 |
2714 |
7273 |
76.2 |
7.02 |
8.1 |
|||||
|
3 |
3167 |
7236 |
78.2 |
7.93 |
9.1 |
|||||
|
4 |
3619 |
7109 |
78.5 |
8.88 |
10.2 |
|||||
|
5 |
3996 |
6954 |
77.2 |
9.76 |
11.2 |
Y160L-2 |
18.5 |
|||
|
6 |
4448 |
6709 |
74.5 |
10.88 |
12.5 |
|||||
|
7 |
4901 |
6400 |
70.5 |
12.09 |
13.9 |
|||||
|
6.3 |
A |
2900 |
1 |
3220 |
9149 |
72.7 |
10.91 |
12.5 |
Y160L-2 |
18.5 |
|
2 |
3865 |
9265 |
76.2 |
12.65 |
14.5 |
|||||
|
3 |
4509 |
9219 |
78.2 |
14.30 |
16.4 |
|||||
|
4 |
5153 |
9055 |
78.5 |
16.00 |
18.4 |
|||||
|
5 |
5690 |
8857 |
77.2 |
17.59 |
20.2 |
Y200L1-2 |
30 |
|||
|
6 |
6334 |
8543 |
74.5 |
19.60 |
22.5 |
|||||
|
7 |
6978 |
8148 |
70.5 |
21.79 |
25.1 |
|||||
|
7.1 |
D |
2900 |
1 |
4610 |
11717 |
72.7 |
19.83 |
23.3 |
Y200L2-2 |
37 |
|
2 |
5532 |
11868 |
76.2 |
22.99 |
27 |
|||||
|
3 |
6454 |
11807 |
78.2 |
25.99 |
30.5 |
|||||
|
4 |
7376 |
11596 |
78.5 |
29.09 |
34.1 |
|||||
|
5 |
8144 |
11340 |
77.2 |
31.98 |
37.5 |
Y250M-2 |
55 |
|||
|
6 |
9066 |
10935 |
74.5 |
35.63 |
41.8 |
|||||
|
7 |
9988 |
10426 |
70.5 |
39.62 |
46.5 |
|||||
|
8 |
D |
2900 |
1 |
6594 |
15034 |
72.7 |
36.02 |
42.3 |
Y280S-2 |
75 |
|
2 |
7913 |
15229 |
76.2 |
41.75 |
49.0 |
|||||
|
3 |
9232 |
15151 |
78.2 |
47.21 |
55.4 |
|||||
|
4 |
10550 |
14877 |
78.5 |
52.83 |
62.0 |
|||||
|
5 |
11649 |
14546 |
77.2 |
58.08 |
68.2 |
|||||
|
6 |
12968 |
14021 |
74.5 |
64.71 |
75.9 |
Y315S-2 |
110 |
|||
|
7 |
14287 |
13362 |
70.5 |
71.95 |
84.4 |
|||||
|
8 |
D |
1450 |
1 |
3297 |
3620 |
72.7 |
4.5 |
5.5 |
Y132M-4 |
7.5 |
|
2 |
3957 |
3665 |
76.2 |
5.22 |
6.1 |
|||||
|
3 |
4616 |
3647 |
78.2 |
5.90 |
6.9 |
|||||
|
4 |
5275 |
3584 |
78.5 |
6.60 |
7.7 |
Y160L-4 |
15 |
|||
|
5 |
5825 |
3507 |
77.2 |
7.26 |
8.5 |
|||||
|
6 |
6484 |
3384 |
74.5 |
8.09 |
9.5 |
|||||
|
7 |
7144 |
3231 |
70.5 |
8.99 |
10.6 |
|||||
|
9 |
D |
1450 |
1 |
4695 |
4597 |
72.7 |
8.11 |
9.5 |
Y160L-4 |
15 |
|
2 |
5633 |
4655 |
76.2 |
9.41 |
11.0 |
|||||
|
3 |
6572 |
4632 |
78.2 |
10.63 |
12.5 |
|||||
|
4 |
7511 |
4551 |
78.5 |
11.90 |
14.0 |
|||||
|
5 |
8294 |
4453 |
77.2 |
13.08 |
15.4 |
Y180L-4 |
22 |
|||
|
6 |
9233 |
4297 |
74.5 |
14.58 |
17.1 |
|||||
|
7 |
10171 |
4101 |
70.5 |
16.21 |
19.0 |
|||||
|
10 |
D |
1450 |
1 |
6440 |
5840 |
76.5 |
13.38 |
15.7 |
Y200L-4 |
30 |
|
2 |
7942 |
5941 |
80 |
16.03 |
18.8 |
|||||
|
3 |
9445 |
5891 |
81.5 |
18.59 |
21.8 |
|||||
|
4 |
10947 |
5740 |
81 |
21.12 |
24.8 |
|||||
|
5 |
12450 |
5495 |
78.2 |
23.84 |
28.0 |
|||||
|
6 |
13952 |
5244 |
74.5 |
26.79 |
31.4 |
Y225S-4 |
37 |
|||
|
7 |
15455 |
4958 |
70 |
29.88 |
35.1 |
|||||
|
11.2 |
D |
1450 |
1 |
9047 |
7364 |
76.5 |
23.58 |
27.7 |
Y225M-4 |
45 |
|
2 |
11158 |
7491 |
80 |
28.25 |
33.2 |
|||||
|
3 |
13269 |
7428 |
81.5 |
32.76 |
38.4 |
|||||
|
4 |
15380 |
7236 |
81 |
37.22 |
43.7 |
|||||
|
5 |
17491 |
6927 |
78.2 |
42.02 |
49.3 |
Y280S-4 |
75 |
|||
|
6 |
19602 |
6609 |
74.5 |
47.21 |
55.4 |
|||||
|
7 |
21713 |
6246 |
70 |
52.66 |
61.8 |
|||||
|
11.2 |
D |
960 |
1 |
5990 |
3182 |
76.5 |
6.84 |
8.0 |
Y180L-6 |
15 |
|
2 |
7388 |
3237 |
80 |
8.20 |
9.6 |
|||||
|
3 |
8785 |
3210 |
81.5 |
9.51 |
11.2 |
|||||
|
4 |
10182 |
3128 |
81 |
10.80 |
12.7 |
|||||
|
5 |
11580 |
2996 |
78.2 |
12.19 |
14.3 |
|||||
|
6 |
12978 |
2860 |
74.5 |
13.70 |
16.1 |
Y200L2-6 |
22 |
|||
|
7 |
14375 |
2705 |
70 |
15.28 |
17.9 |
|||||
|
12.5 |
D |
1450 |
1 |
12577 |
9229 |
76.5 |
40.84 |
47.9 |
Y280S-4 |
75 |
|
2 |
15512 |
9390 |
80 |
48.92 |
57.4 |
|||||
|
3 |
18447 |
9310 |
81.5 |
56.72 |
66.6 |
|||||
|
4 |
21381 |
9068 |
81 |
64.46 |
75.6 |
Y315S-4 |
110 |
|||
|
5 |
24316 |
8678 |
78.2 |
72.76 |
85.4 |
|||||
|
6 |
27251 |
8278 |
74.5 |
81.75 |
95.9 |
|||||
|
7 |
30186 |
7822 |
70 |
91.18 |
107.0 |
|||||
|
12.5 |
D |
960 |
1 |
8327 |
3975 |
76.5 |
11.85 |
13.9 |
Y200L2-6 |
22 |
|
2 |
10270 |
4043 |
80 |
14.20 |
16.7 |
|||||
|
3 |
12213 |
4009 |
81.5 |
16.46 |
19.3 |
|||||
|
4 |
14156 |
3907 |
81 |
18.71 |
21.9 |
|||||
|
5 |
16099 |
3741 |
78.2 |
21.11 |
24.8 |
Y250M-6 |
37 |
|||
|
6 |
18042 |
3571 |
74.5 |
23.72 |
27.8 |
|||||
|
7 |
19985 |
3377 |
70 |
26.46 |
31.1 |
|||||
|
14 |
D |
1450 |
1 |
17670 |
11668 |
76.5 |
71.97 |
84.5 |
Y315M-4 |
132 |
|
2 |
21793 |
11874 |
80 |
86.22 |
101.2 |
|||||
|
3 |
25916 |
11771 |
81.5 |
99.96 |
117.3 |
|||||
|
4 |
30040 |
11464 |
81 |
113.59 |
133.3 |
Y355M-4 |
220 |
|||
|
5 |
34163 |
10967 |
78.2 |
128.22 |
150.5 |
|||||
|
6 |
38286 |
10457 |
74.5 |
144.06 |
169.1 |
|||||
|
7 |
42409 |
9878 |
70 |
160.69 |
188.6 |
|||||
|
14 |
D |
960 |
1 |
11699 |
5004 |
76.5 |
20.89 |
24.5 |
Y250M-6 |
37 |
|
2 |
14428 |
5090 |
80 |
25.02 |
29.4 |
|||||
|
3 |
17158 |
5047 |
81.5 |
29.01 |
34.0 |
|||||
|
4 |
19888 |
4917 |
81 |
32.97 |
38.7 |
Y315S-6 |
75 |
|||
|
5 |
22618 |
4709 |
78.2 |
37.21 |
43.7 |
|||||
|
6 |
25348 |
4494 |
74.5 |
41.81 |
49.1 |
|||||
|
7 |
28078 |
4249 |
70 |
46.63 |
54.7 |
|||||
|
16 |
D |
1450 |
1 |
26377 |
15425 |
76.5 |
140.31 |
164.6 |
Y355M3-4 |
315 |
|
2 |
32531 |
15700 |
80 |
168.09 |
197.2 |
|||||
|
3 |
38686 |
15563 |
81.5 |
194.89 |
228.7 |
|||||
|
4 |
44841 |
15151 |
81 |
221.46 |
259.9 |
|||||
|
5 |
50995 |
14488 |
78.2 |
249.98 |
293.3 |
|||||
|
6 |
57150 |
13808 |
74.5 |
280.88 |
329.6 |
JS138-4 |
410 |
|||
|
7 |
63305 |
13035 |
70 |
313.29 |
367.6 |
|||||
|
16 |
D |
960 |
1 |
17463 |
6570 |
76.5 |
40.72 |
47.8 |
Y315S-6 |
75 |
|
2 |
21538 |
6683 |
80 |
48.78 |
57.2 |
|||||
|
3 |
25613 |
6627 |
81.5 |
56.56 |
66.4 |
|||||
|
4 |
29687 |
6456 |
81 |
64.27 |
75.4 |
Y315L1-6 |
110 |
|||
|
5 |
33762 |
6180 |
78.2 |
72.55 |
85.1 |
|||||
|
6 |
37837 |
5898 |
74.5 |
81.52 |
95.7 |
|||||
|
7 |
41912 |
5575 |
70 |
90.92 |
106.7 |
|||||
